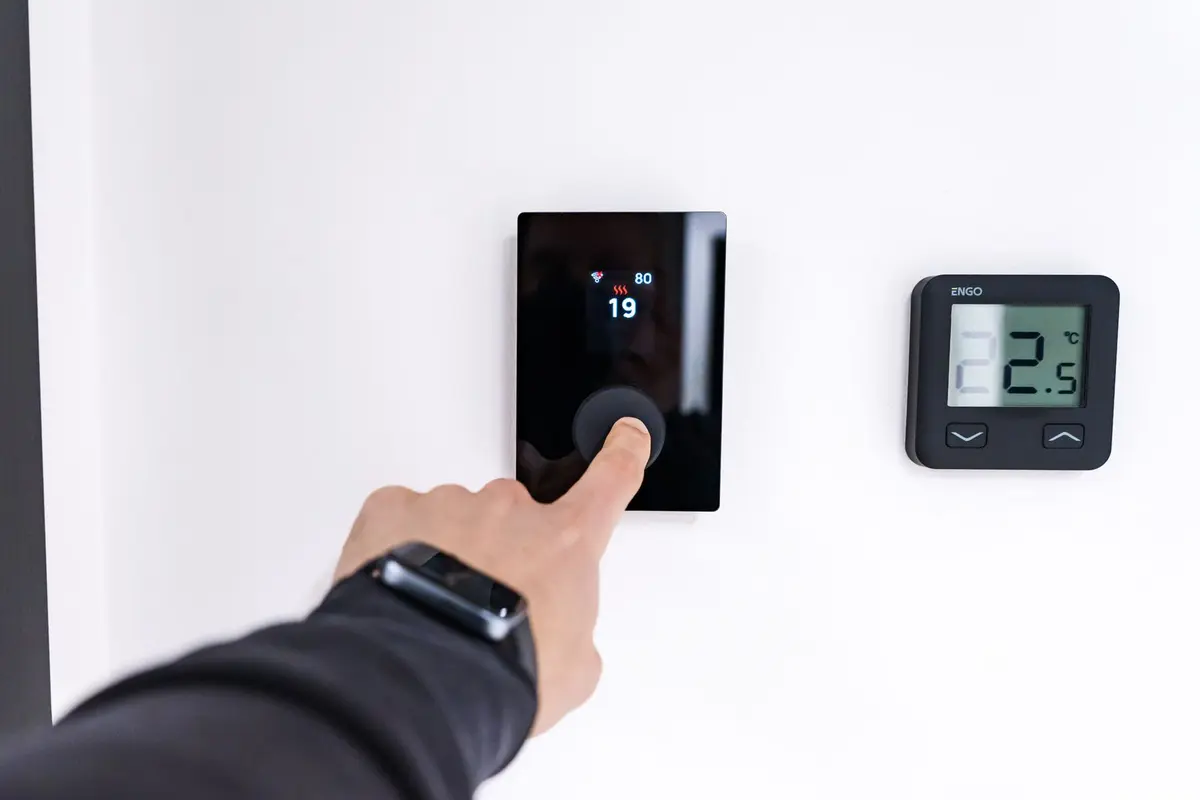

How to Verify Smart Thermostat Compatibility With Your HVAC System

Step by step

1. 1 min

   Power down the HVAC system

   Locate your home's circuit breaker panel. Flip the switch dedicated to your HVAC system to the OFF position to prevent electrical shorts during inspection.

   Note: Verify the display on your current thermostat is blank before proceeding.
2. 2 min

   Remove the thermostat faceplate

   Gently pull the thermostat cover off the wall plate. If secured by screws, use a screwdriver to remove them, then carefully lift the unit away from the wall to expose the wiring terminals.

3. 1 min

   Identify the wire configuration

   Look for the letter labels next to each connected wire, such as R, W, Y, G, and C. Document the current configuration by taking a clear high-resolution photo of the terminal block.

   Note: A C-wire (Common) is essential for most smart thermostats to provide constant power.
4. 30 sec

   Confirm voltage requirements

   Check the back of the thermostat or the wiring for thick, high-voltage wires. Smart thermostats are typically designed for 24V low-voltage systems; 120V or 240V line-voltage systems are incompatible.

   Note: If you see wire nuts connecting thick cables, your system is line-voltage and is not compatible with standard smart thermostats.
5. 1 min

   Utilize online compatibility checkers

   Navigate to the manufacturer's website of your chosen thermostat. Input your documented wire configuration into their web-based compatibility tool to receive a definitive confirmation for your specific model.

   Note: Always cross-reference the manufacturer's findings with the physical wires identified in step 3.
